SkyWave Segmented VCO & Scaffold Expander - Eurorack

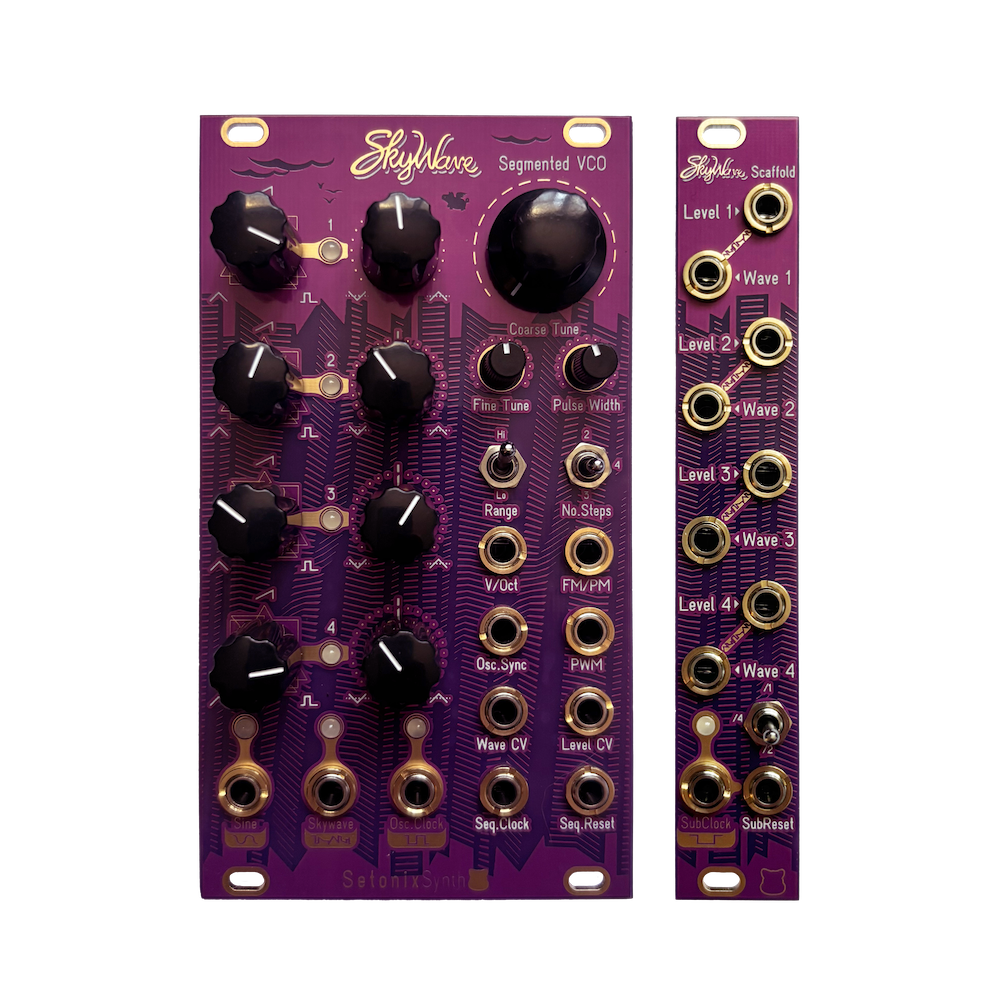

The SetonixSynth SkyWave is an analog voltage-controlled oscillator capable of producing many different timbres and unique harmonic behaviors, thanks to an original step-based control scheme which allows the user to dial in completely different wave-shapes and levels for successive oscillator cycles.
The SkyWave uses an internal feedback loop with the clock output of the oscillator triggering a step sequencer which in turn cycles through settings at the frequency of the core oscillator, thus changing the shape and level of the waveform output on a per-cycle basis while also staying in tune and tracking pitch like a typical VCO.
This powerful oscillator can be broken out still further with the addition of Scaffold, a small but mighty expander which adds individual summed CV inputs for all four stages of Waveform and Level control, plus a clock divider which augments SkyWave’s own internal clock to allow the oscillator to “repeat” each step 1, 2 or 4 times. (Please note that only one Scaffold can be connected to a SkyWave at once.)
With its novel yet user-friendly control scheme and feature-rich topology, the SkyWave is sure to be a powerful new voice in your setup, with a sound that touches on the magic of classic digital oscillators and DCO’s while remaining firmly planted in the analog realm!
User Manual
SkyWave Features:
-Complex analog oscillator in 14hp (Scaffold adds 4hp)
-Variable level and waveshape with full CV control and PWM
-Unique “SkyWave” output with sequential waveform control
-Selectable # of steps, clock input and reset for step sequencer
-Audio or LFO output frequency range
-Additional Sine and Clock waveform outputs
-TZFM/TZPM, 1V/Octave and Hard Sync inputs
-Clock division and per-step CV control via Scaffold expander
Technical Specs:
Width: 14hp
Depth: 30mm
SkyWave Current Draw: 80mA @ +12V, 60mA @ -12V
Scaffold Current Draw: 20mA @ +12V, 20mA @ -12V
Input Impedance (All Inputs): 100kΩ
Output Impedance (All Outputs): 1kΩ
