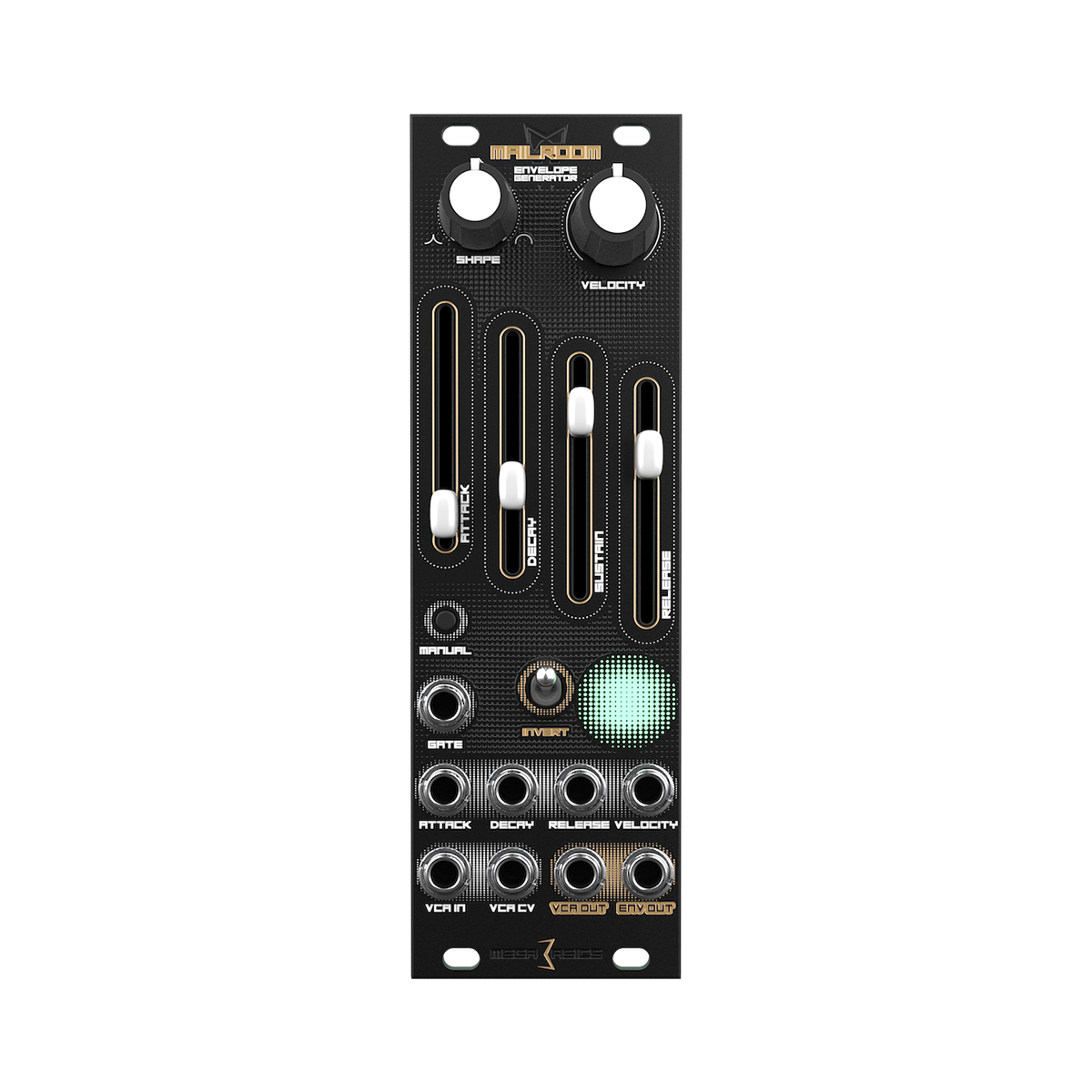

Mega Modular Corp. Mailroom ADSR/VCA - Eurorack
The Mega Modular Corp. MAILROOM is a feature-packed enveloping powerhouse, offering a snappy, plucky and fully voltage-controlled ADSR envelope and high-quality linear VCA. In just 8hp, the Mailroom is perfect for adding controlled dynamics at the end of a signal chain, before or after effects, or in a feedback loop.
The Mailroom augments the typical ADSR with onboard Shape (exponential to logarithmic response) and Velocity (envelope amount) controls, CV control inputs for Attack, Sustain, Release, and Velocity, and a Manual button and Invert switch to allow for easy ducking and gating.
Though the user can often save a patch cable or two due to the normalization of the Mailroom’s ADSR to its VCA CV input, the envelope and VCA can also be used fully independently for maximum patching flexibility, making it a perfect “toolbox” module that always finds its way into a patch.
For the perfect ADSR + VCA combo for East Coast patching and more, be sure to reach for the Mega Modular Corp. Mailroom!
Features:
- Four-stage ADSR envelope with CV control of Attack, Decay, and Release
- Slider control of ADSR parameters
- Exponential-to-logarithmic Shape control knob
- Velocity (envelope level) control with CV input
- Envelope triggerable and re-triggerable via Gate input and Manual switch
- Invert switch; “Zero” corresponds to Unity Gain in Invert mode
- Onboard DC-coupled linear VCA with Envelope Output normalized to CV Input jack
- Dedicated Envelope Output jack with selectable voltage range (0-5V or 0-8V)
- Technical Specs:
Eurorack modular format; 8hp width, 25mm Depth
Current draw: 55mA @ +12V, 55mA @ -12V
